KKE Racing

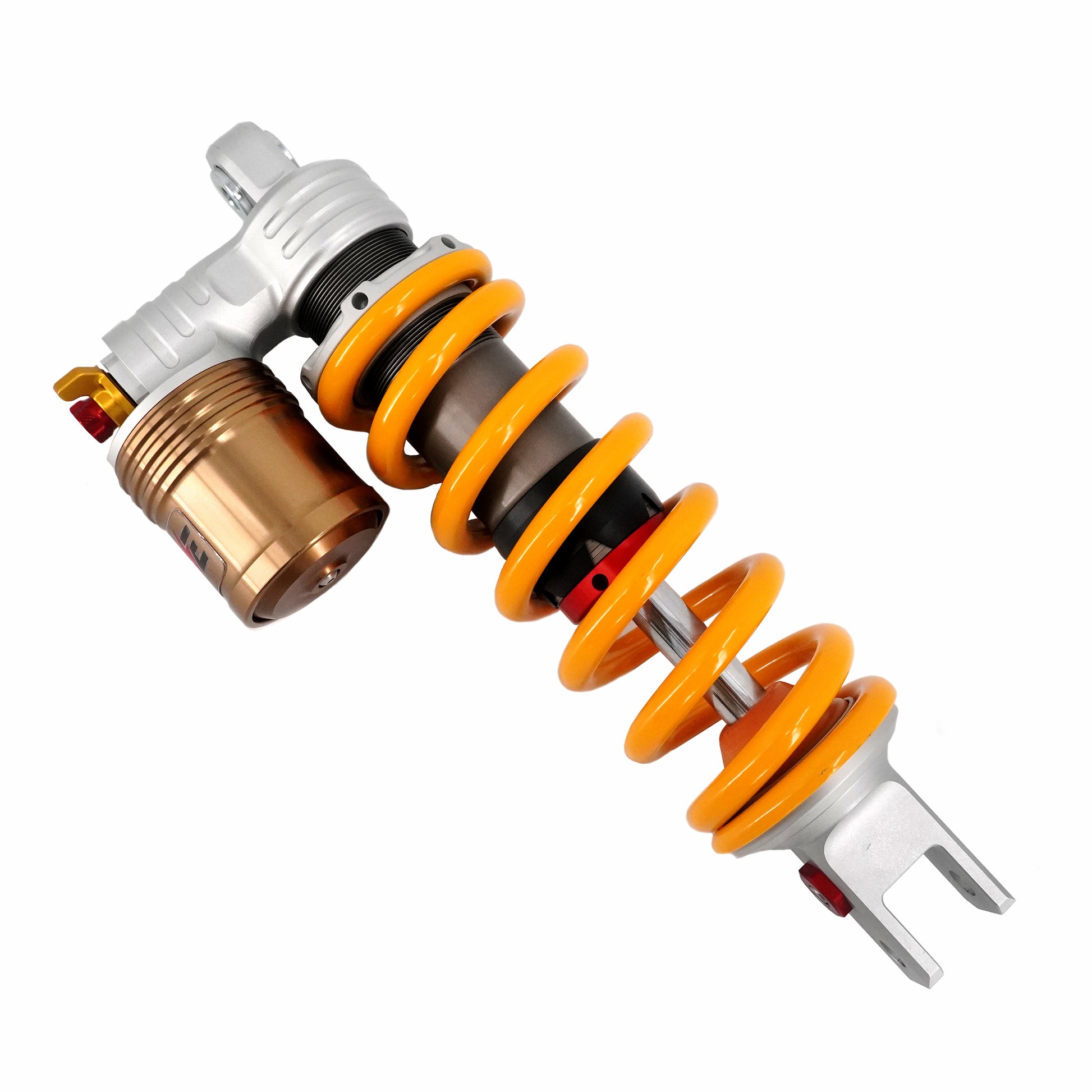

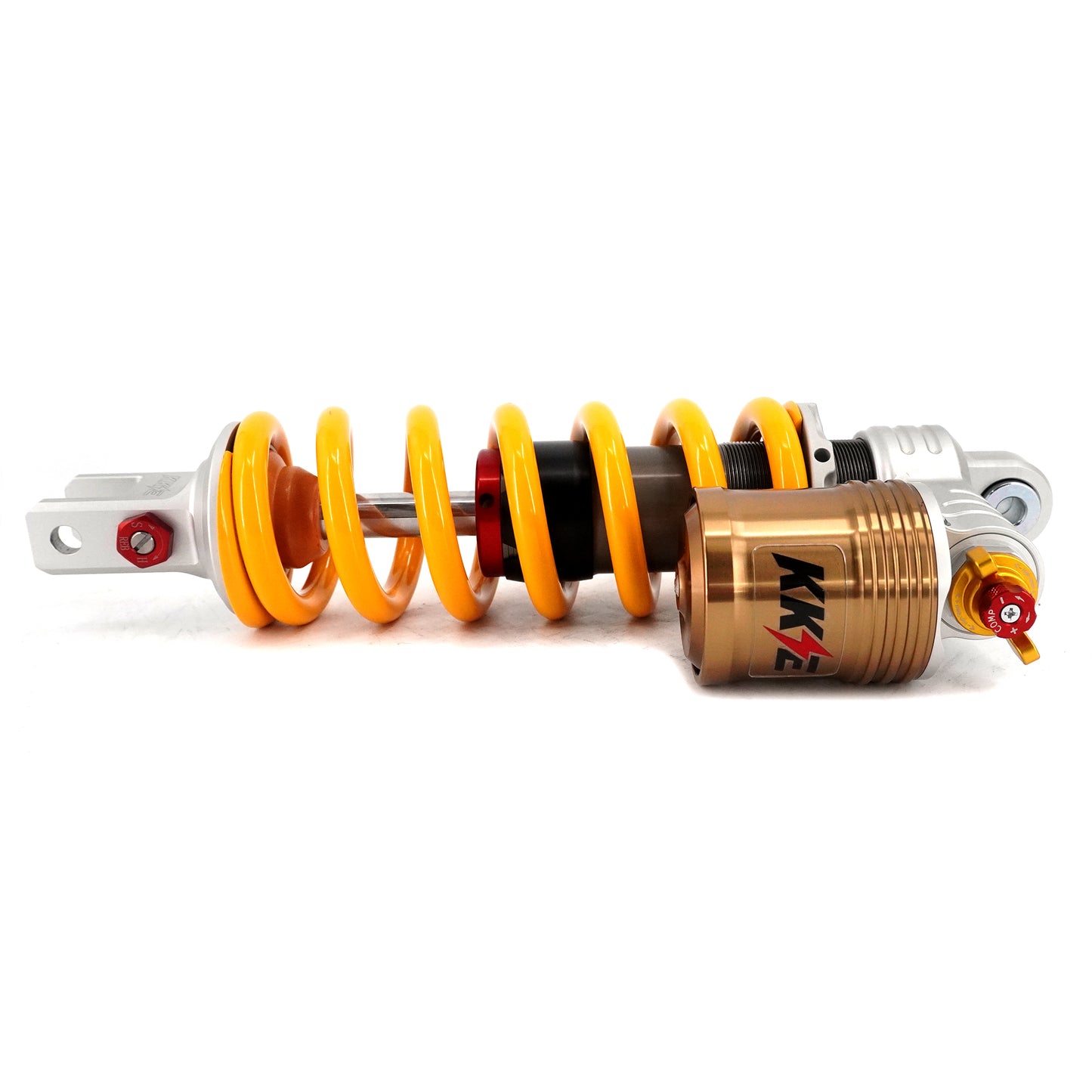

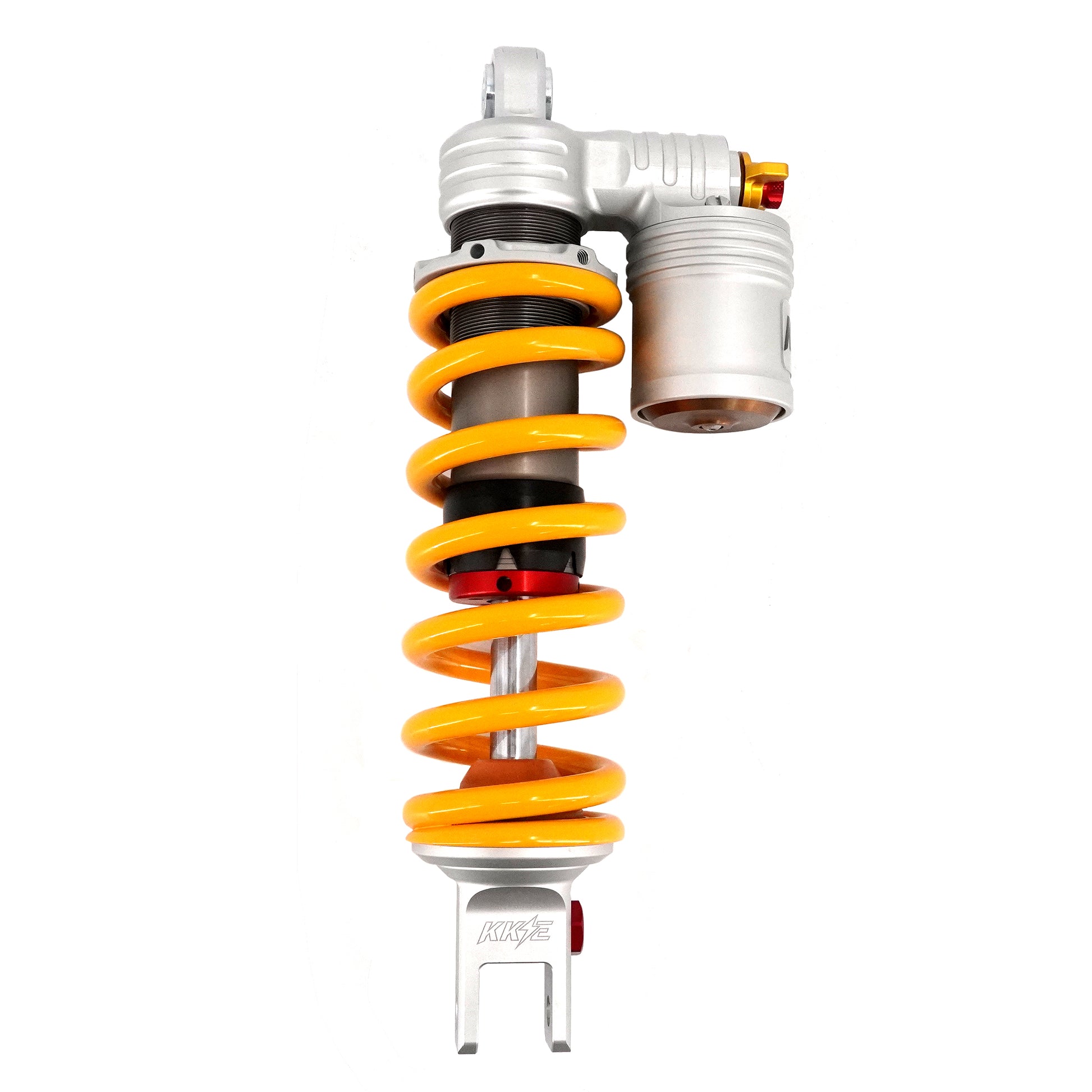

KKE Upgraded Rear Suspension Shock Spring Absorber for SurRon Ultra Bee Electric Dirt Bike in Different Color Available

KKE Upgraded Rear Suspension Shock Spring Absorber for SurRon Ultra Bee Electric Dirt Bike in Different Color Available

$399.00 USD
$399.00 USD
Sale Sold out
Color
SKU: MA40C03-0107

Specifications:

  • Total Length: 320mm
  • Top Mounting Size: 10x24
  • Bottom Fork: 10x24.2

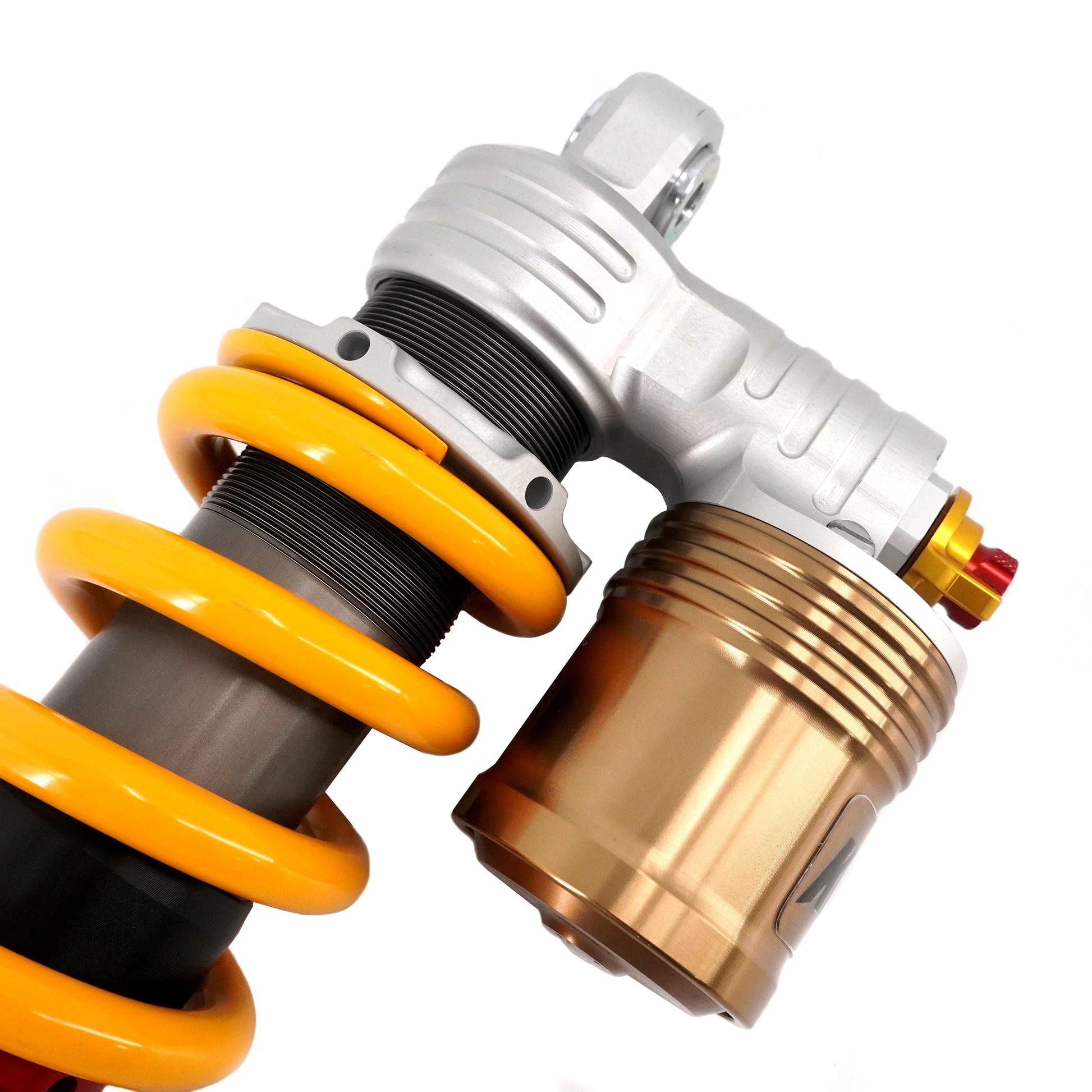

  • Upper Mount: AL6061-T6, matte silver/black, full CNC machining
  • Lock Nut: AL6061-T6, matte silver/black, full CNC machining
  • Spring Guide Bushing: POM, black, oil cylinder protection

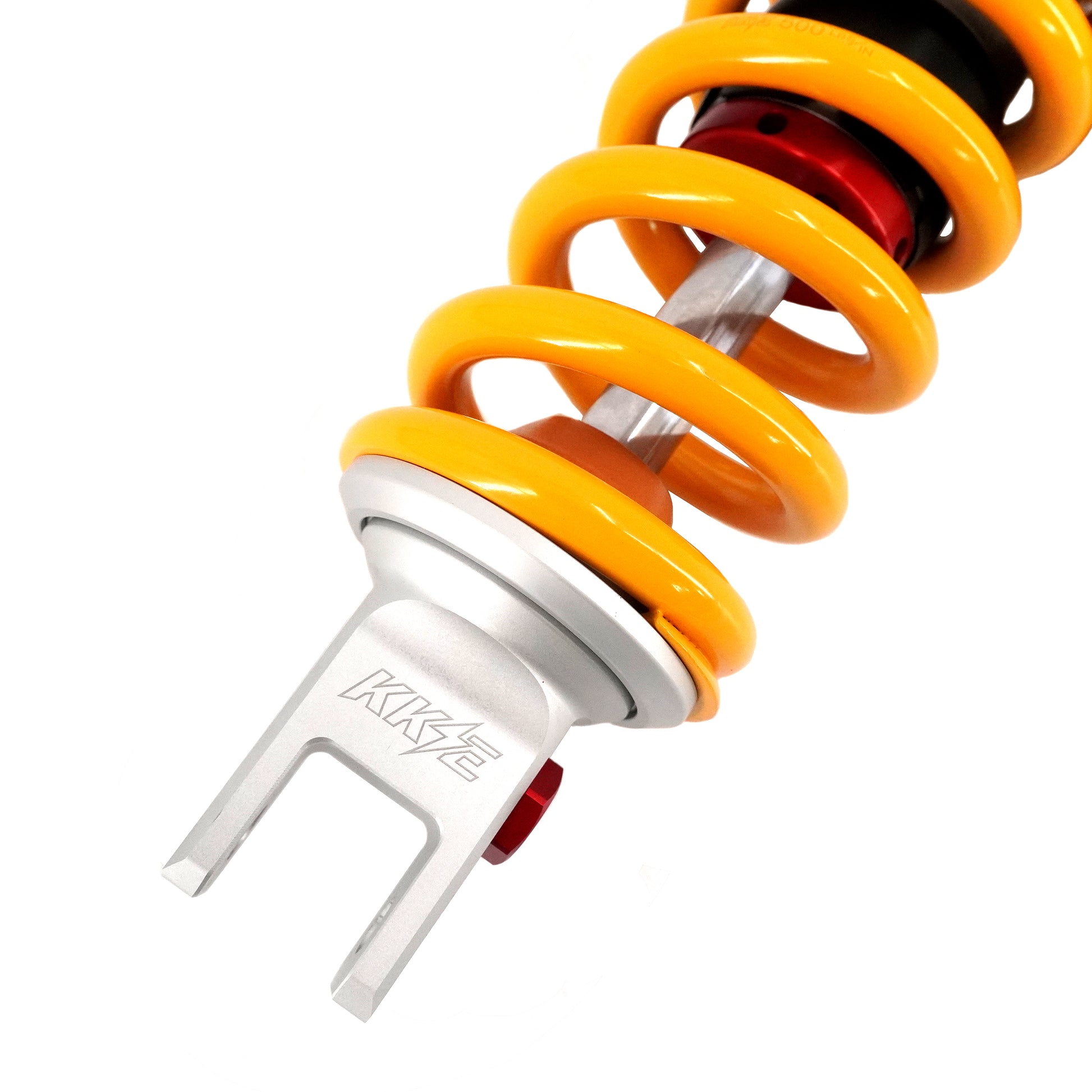

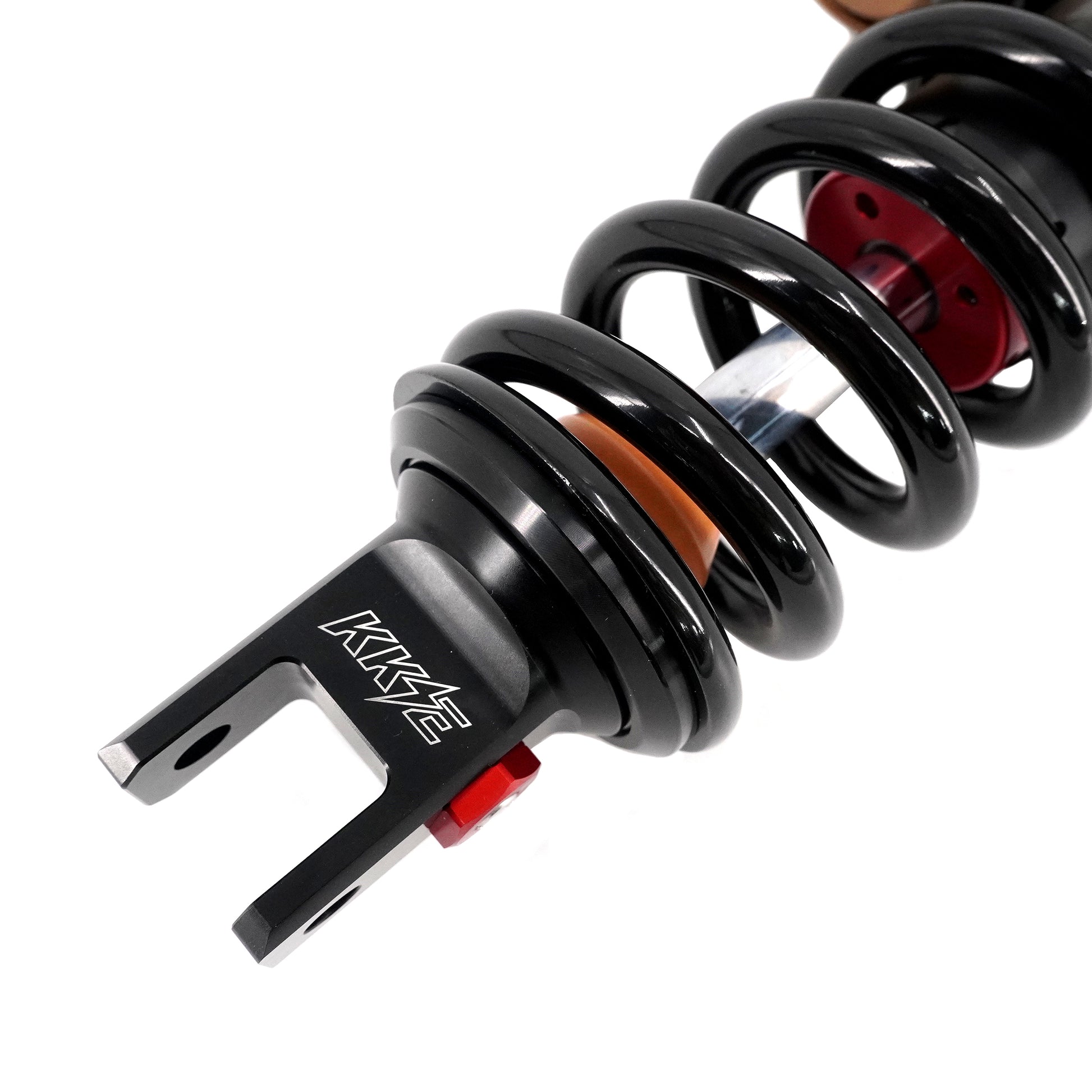

  • Lower Fork: AL6061-T6, matte silver/black, full CNC machining

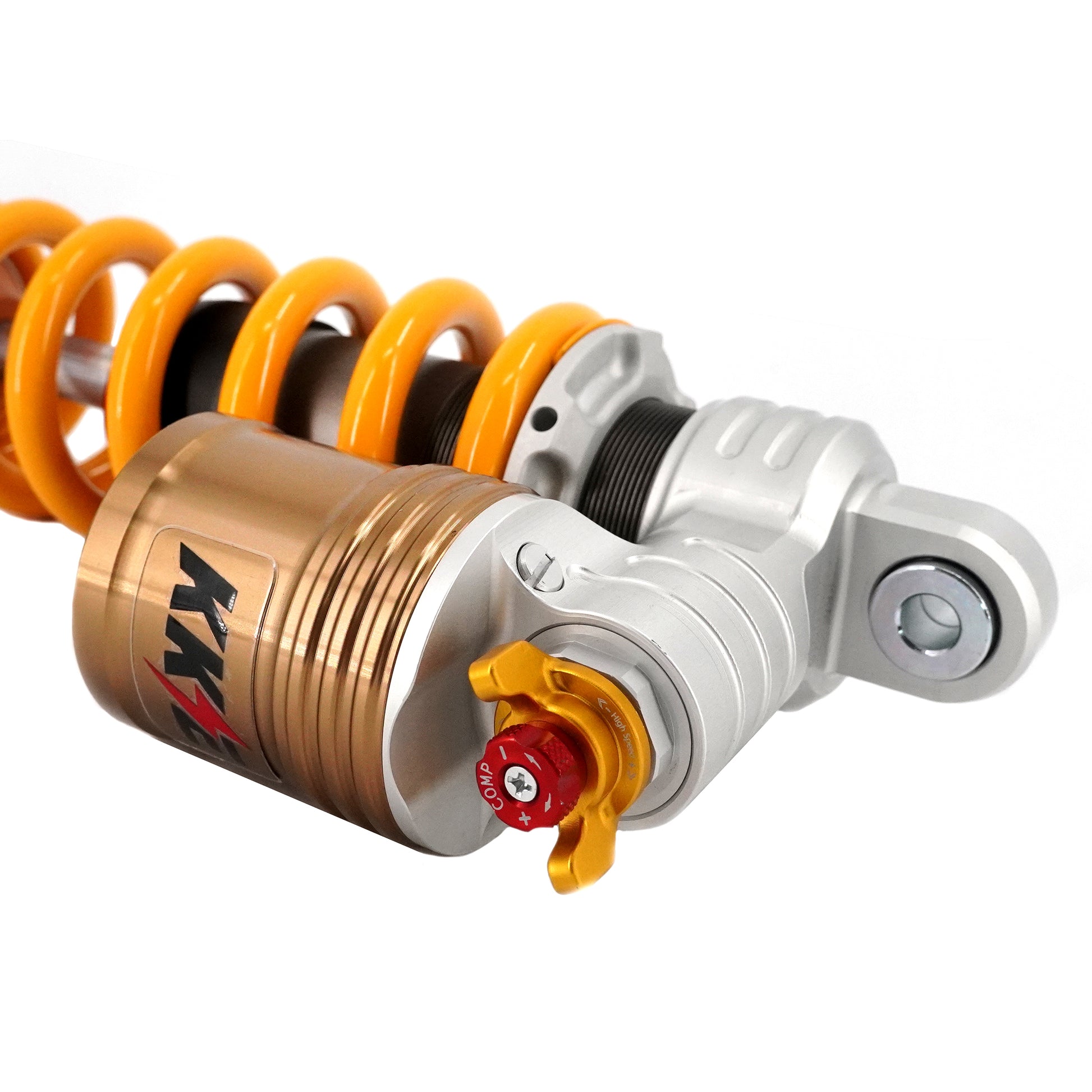

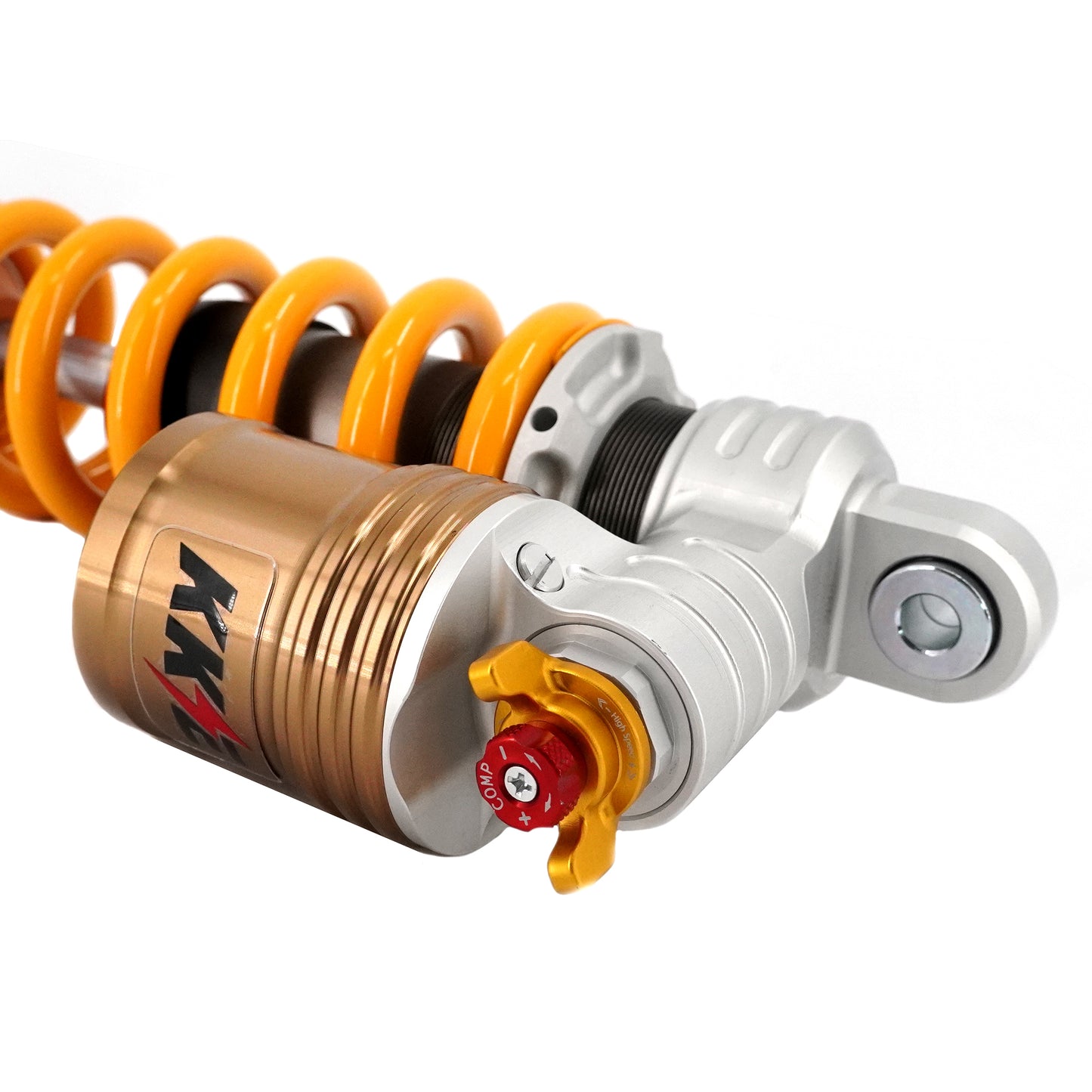

  • Compression High-speed Adjustment: AL6061-T6, gold, full CNC precision machining
  • Compression Low-speed Adjustment: AL6061-T6, red, full CNC precision machining

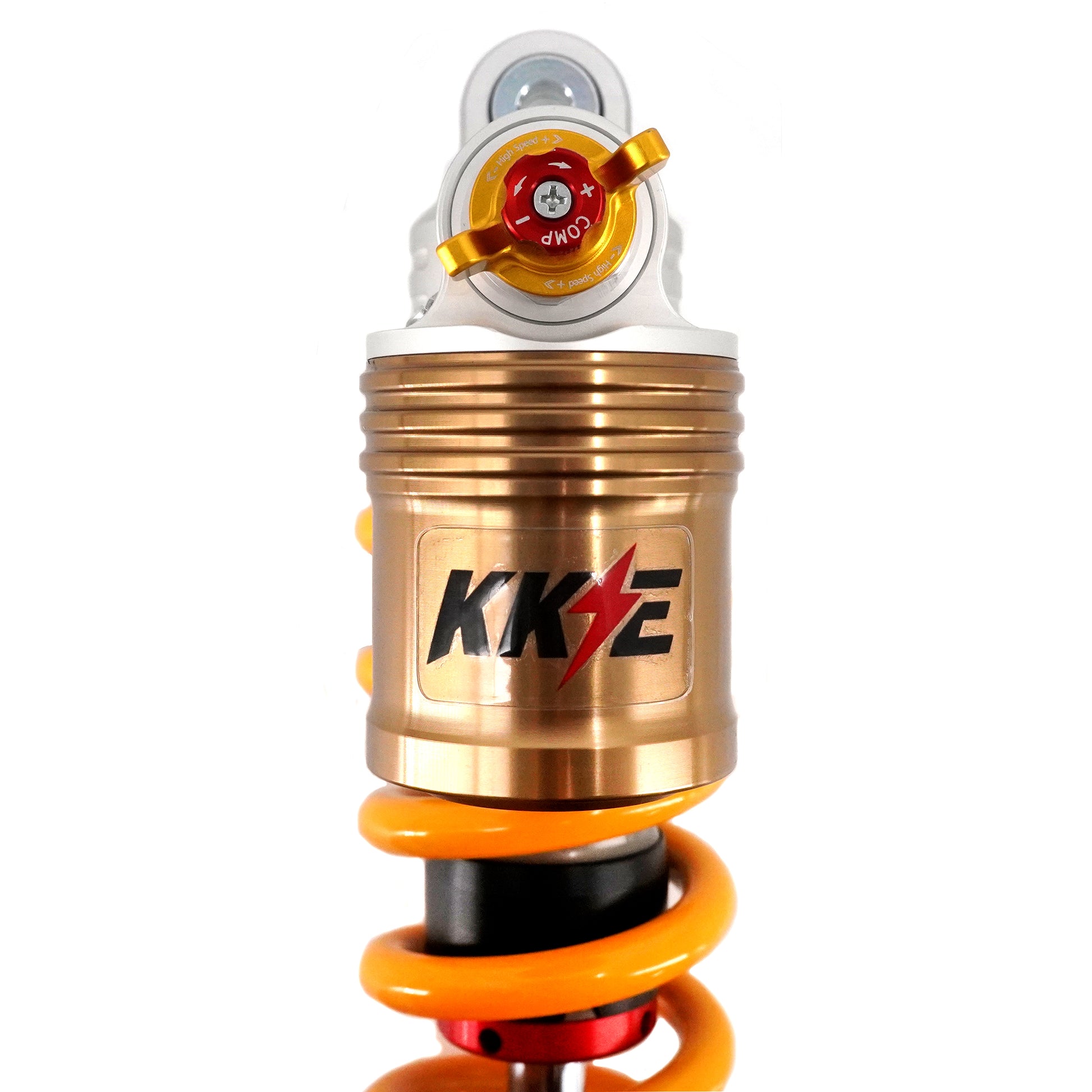

  • Air Chamber: AL6061-T6, matte silver/champagne gold, precision-drawn tube
  • Oil Chamber: AL7075-T6, raw aluminum, precision machining (honing process)
  • Piston Rod: 40Cr, hard chrome-plated finish, nickel plating first and then chrome plating on the surface

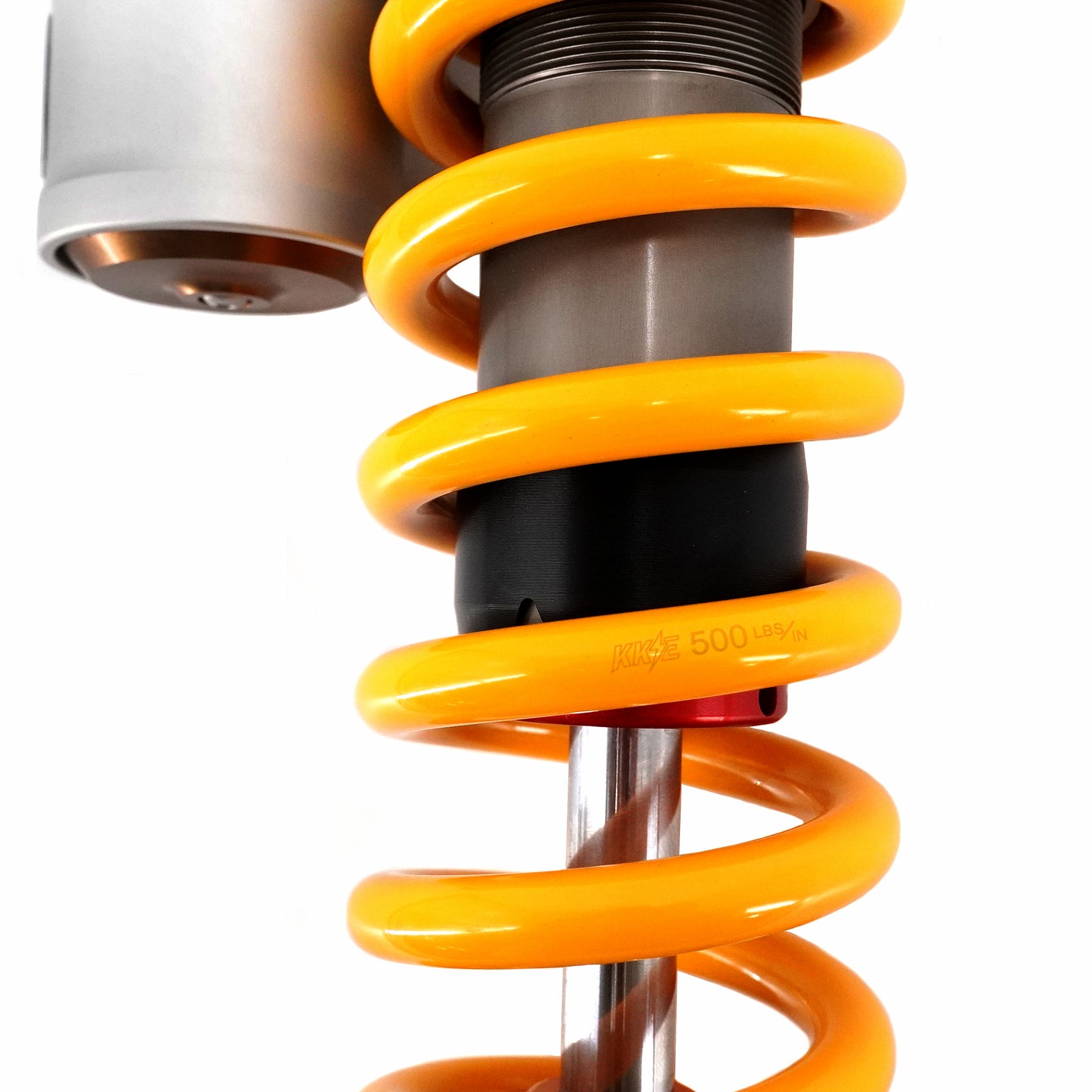

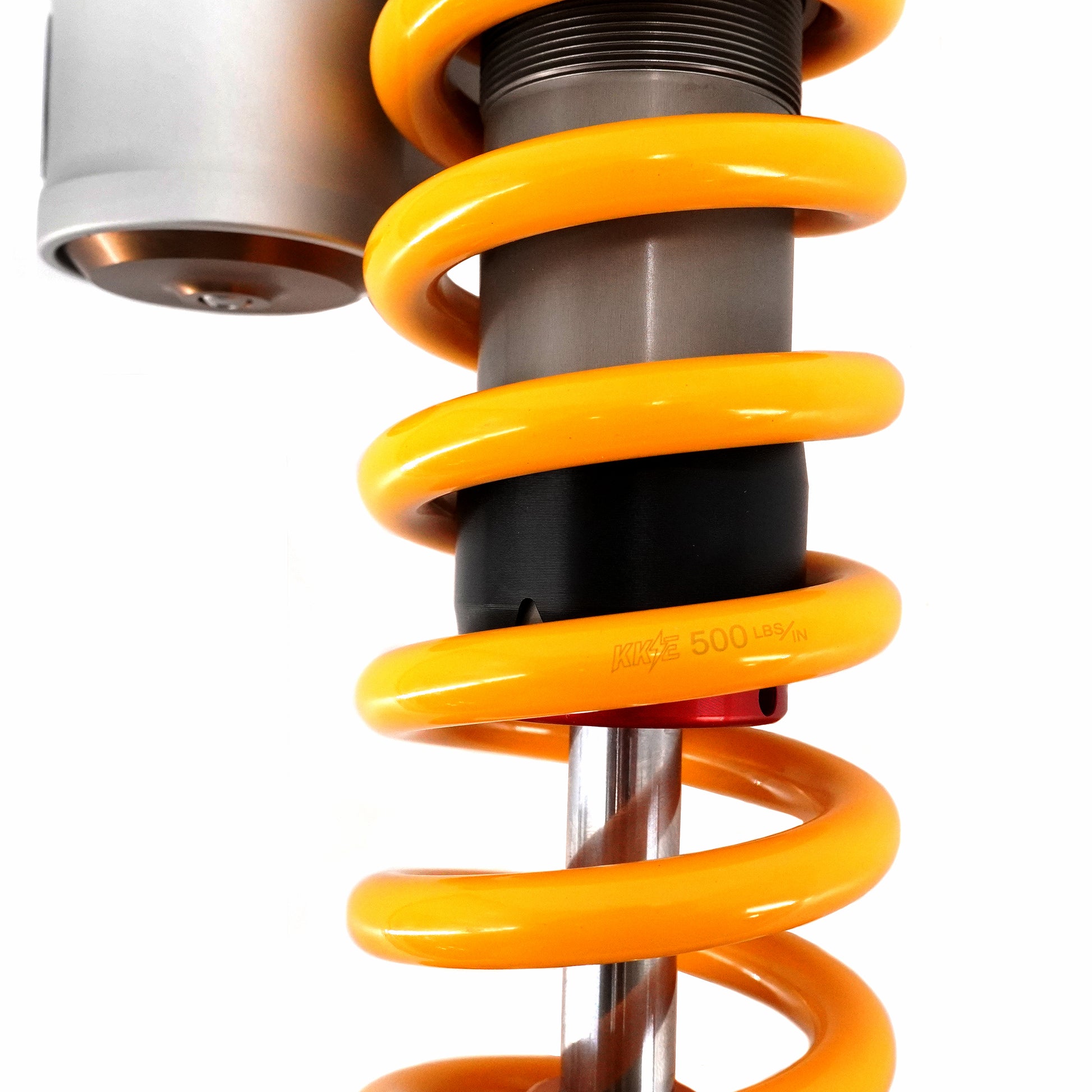

  • Shock Spring: 55CrSi-C-GB, yellow/white/black option, high-performance left-hand Spring
  • Shock Pad: Polyurethane, yellow, automotive high-performance


Features:
  1. 40mm large cylinder bore diameter, more tunable damping
  2. Spring load upgraded to 500lbs, stronger support
  3. 16.0mm piston rod, optimizes the internal rebound and compression oil volume ratio to the ideal level
  4. Added high-pressure adjustment, wider compression tuning range
  5. Added internal hydraulic cushioning, all internal rubber components are upgraded to full-metal parts
  6. Professionally calculated oil channels, maximized shock performance
  7. New shock pad, extra support via special structure
  8. Imported high-performance shock oil, stable damping & low temperature fade
  9. Professionally tuned damping (extensively tested), award-winning performance



Recommendation for Riders:

  • KKE Rear Shock with 500lbs spring Fit 65–85kg Riders Weight

Note: handles 90% of road conditions via click adjustment



Fitment:

  • For Surron Ultra Bee 2023-2025

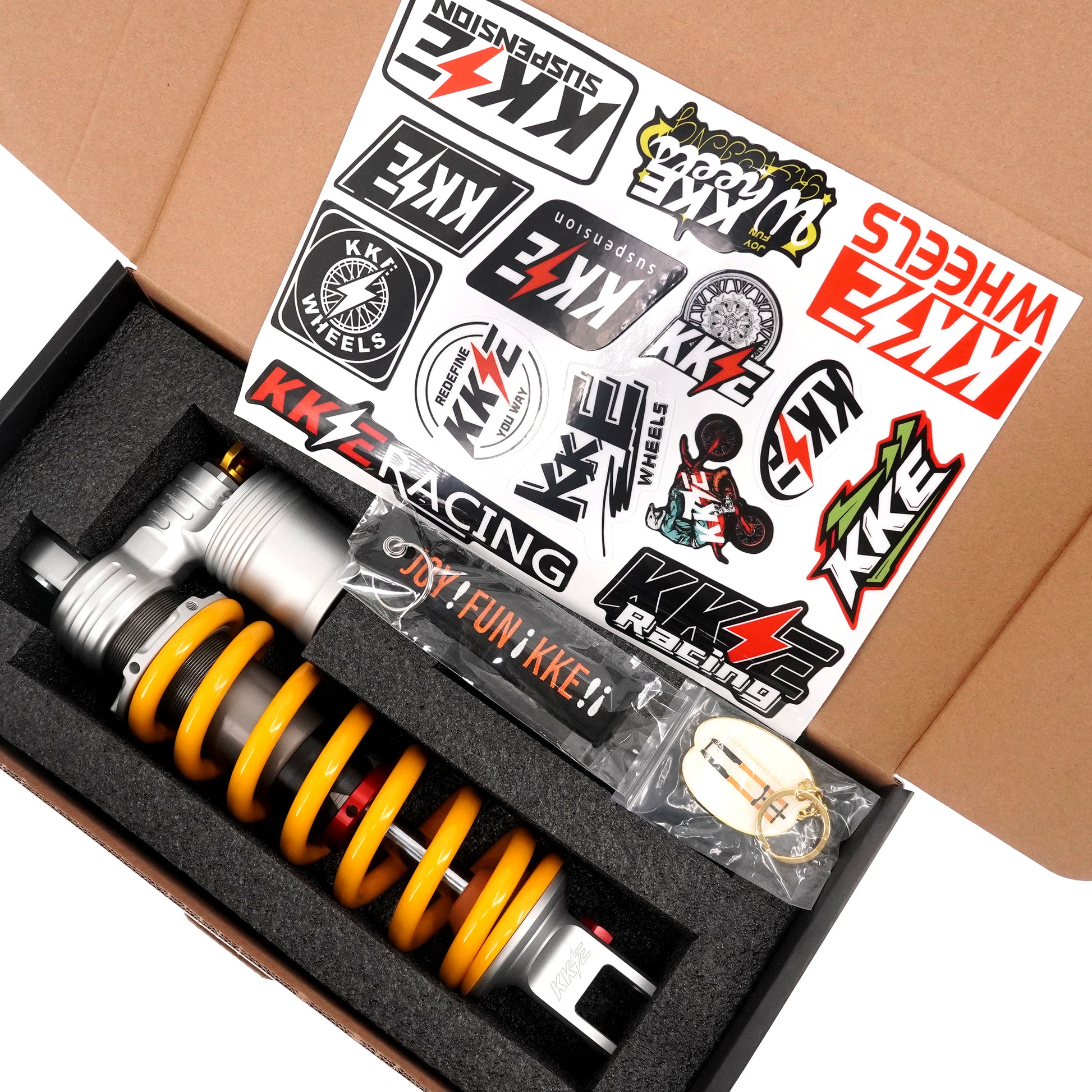

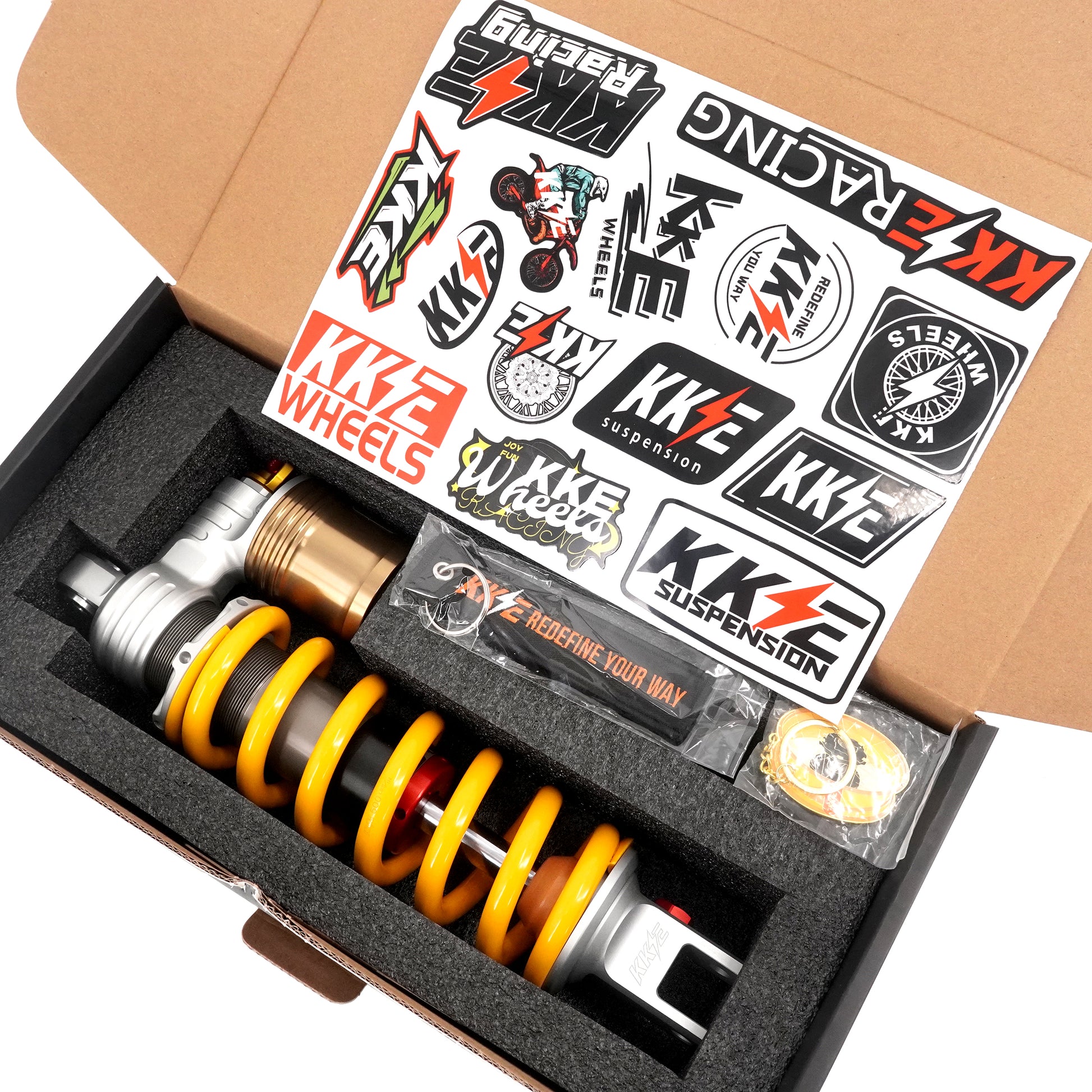

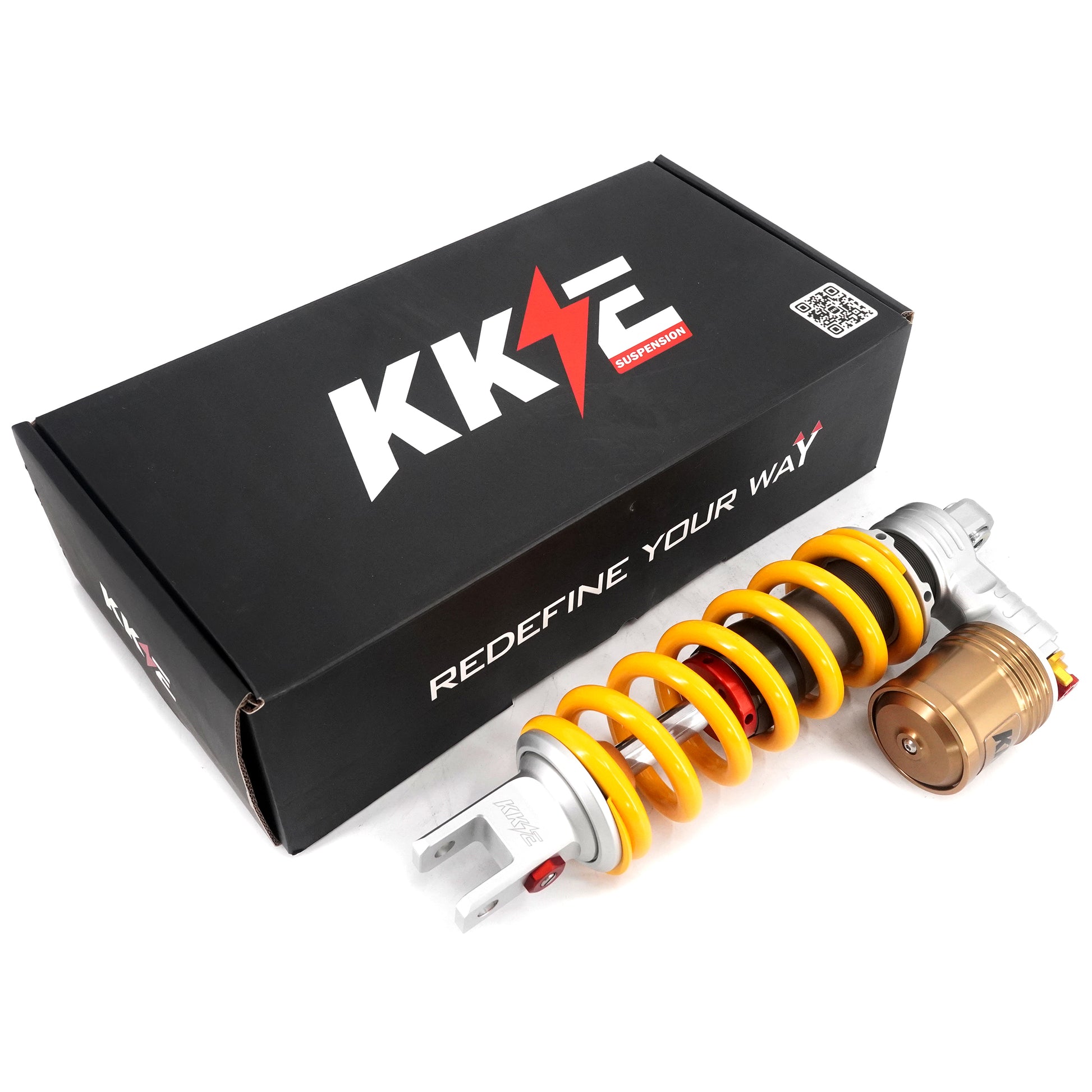

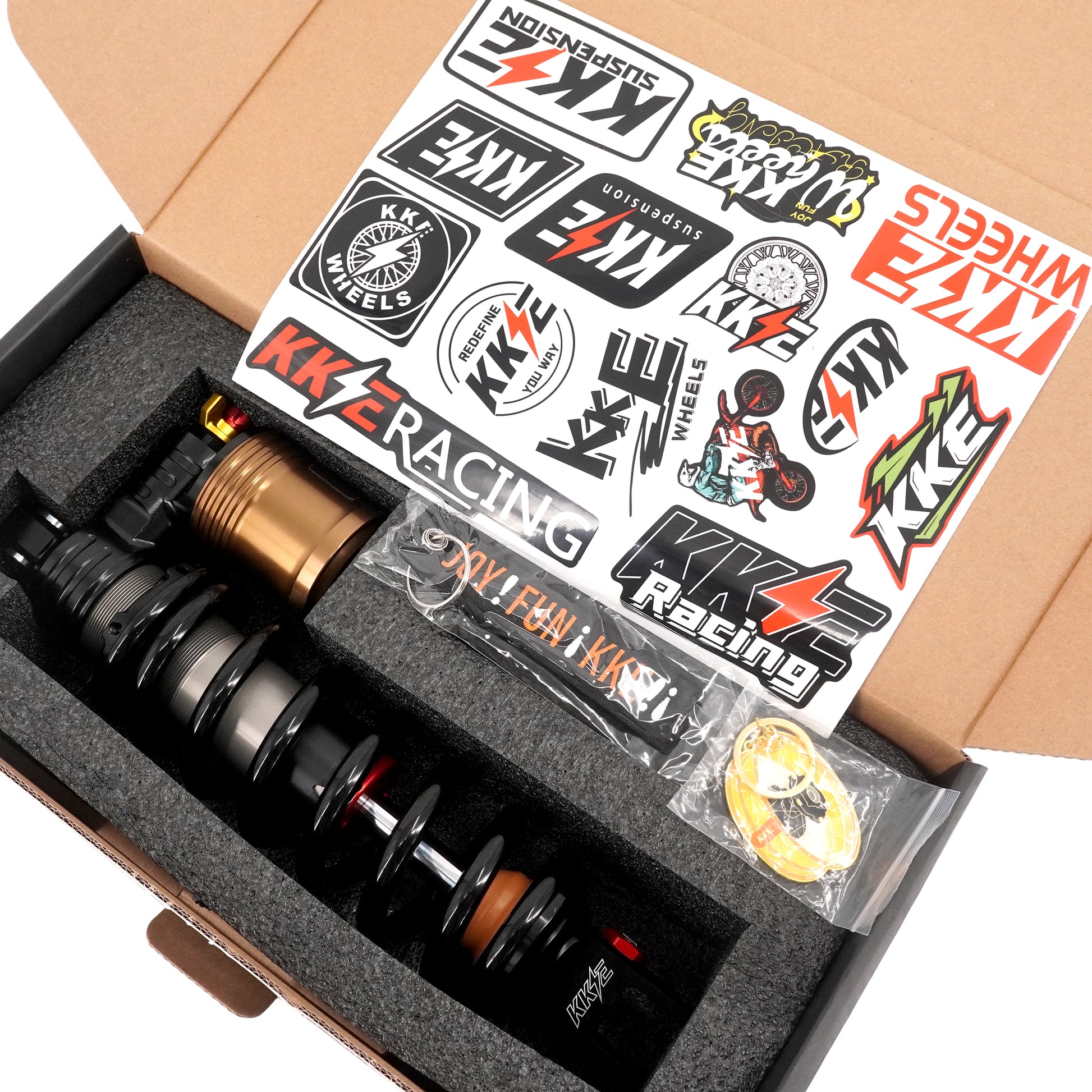

Package Included:

  • Rear shock absorber assembled with 500Ibs Spring 1set
  • KKE premium sticker 1pcs
  • KKE special-design keychain 2pcs



Color Option:

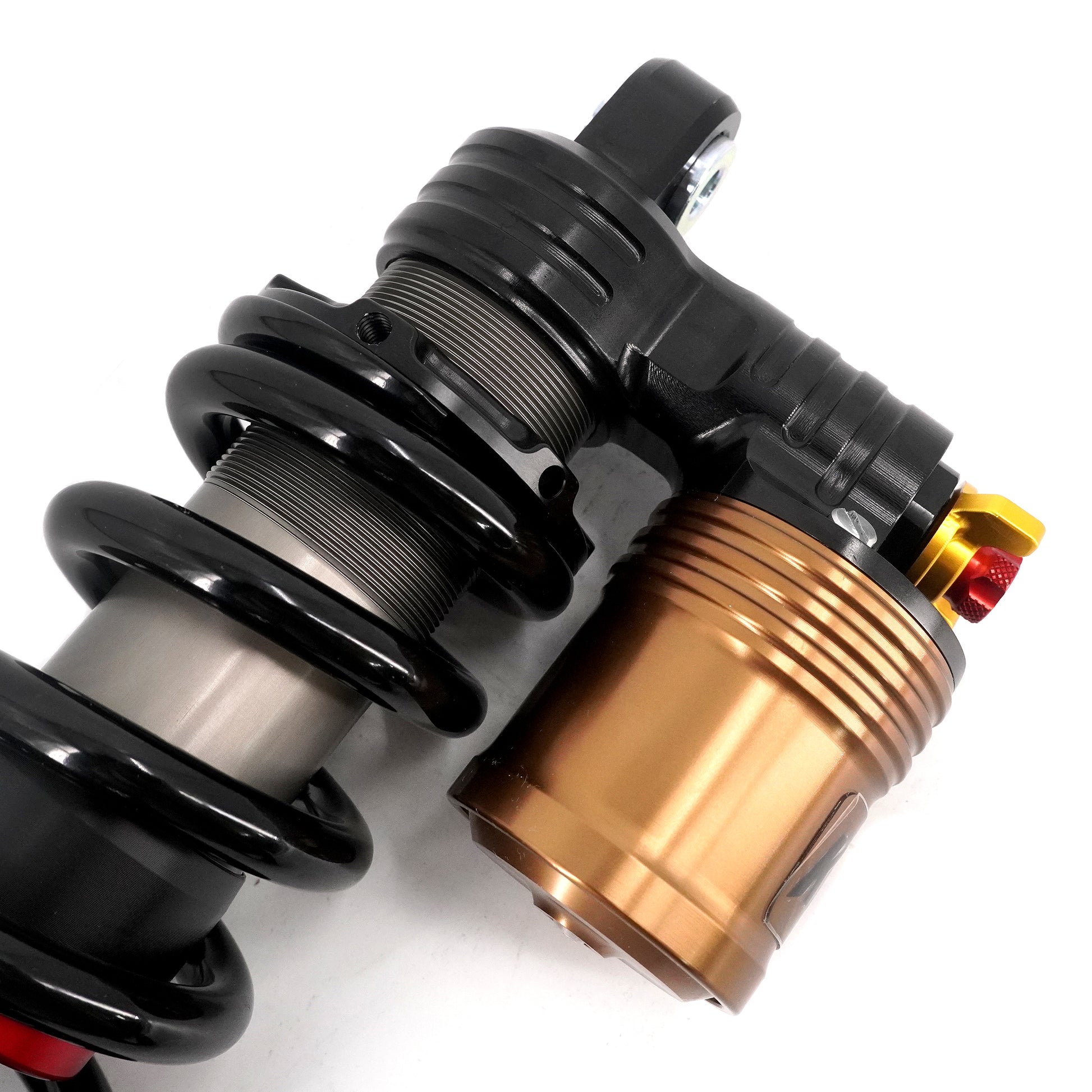

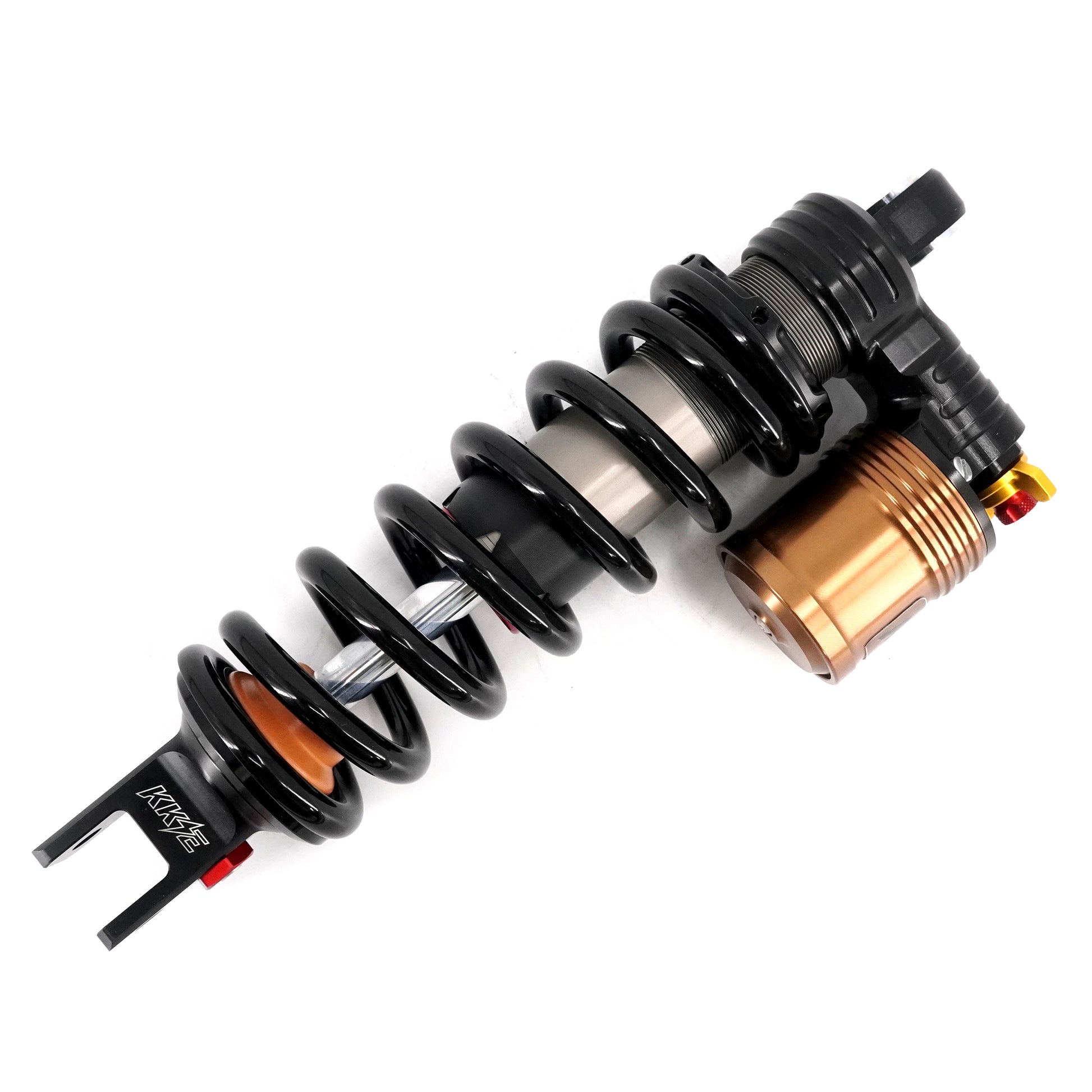

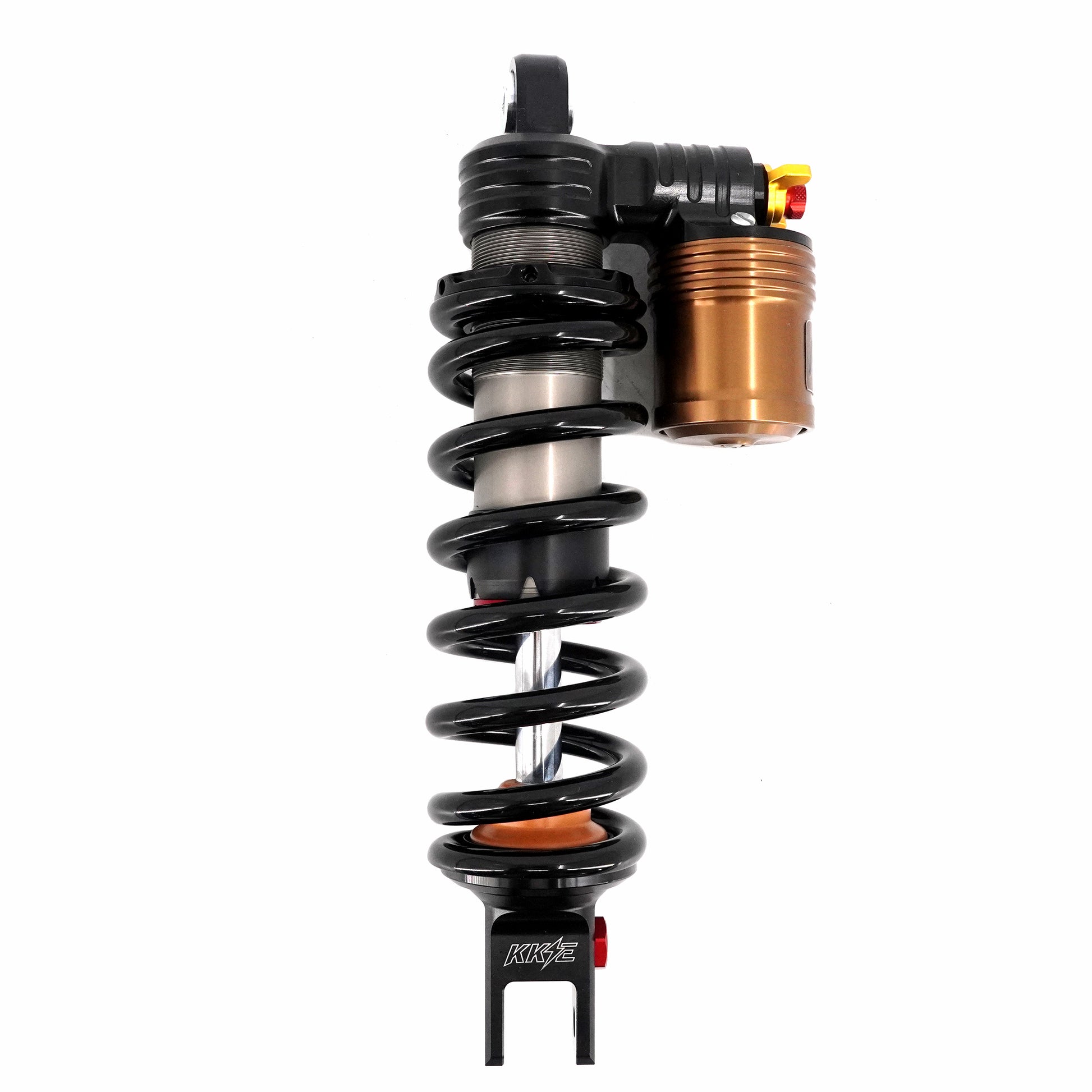

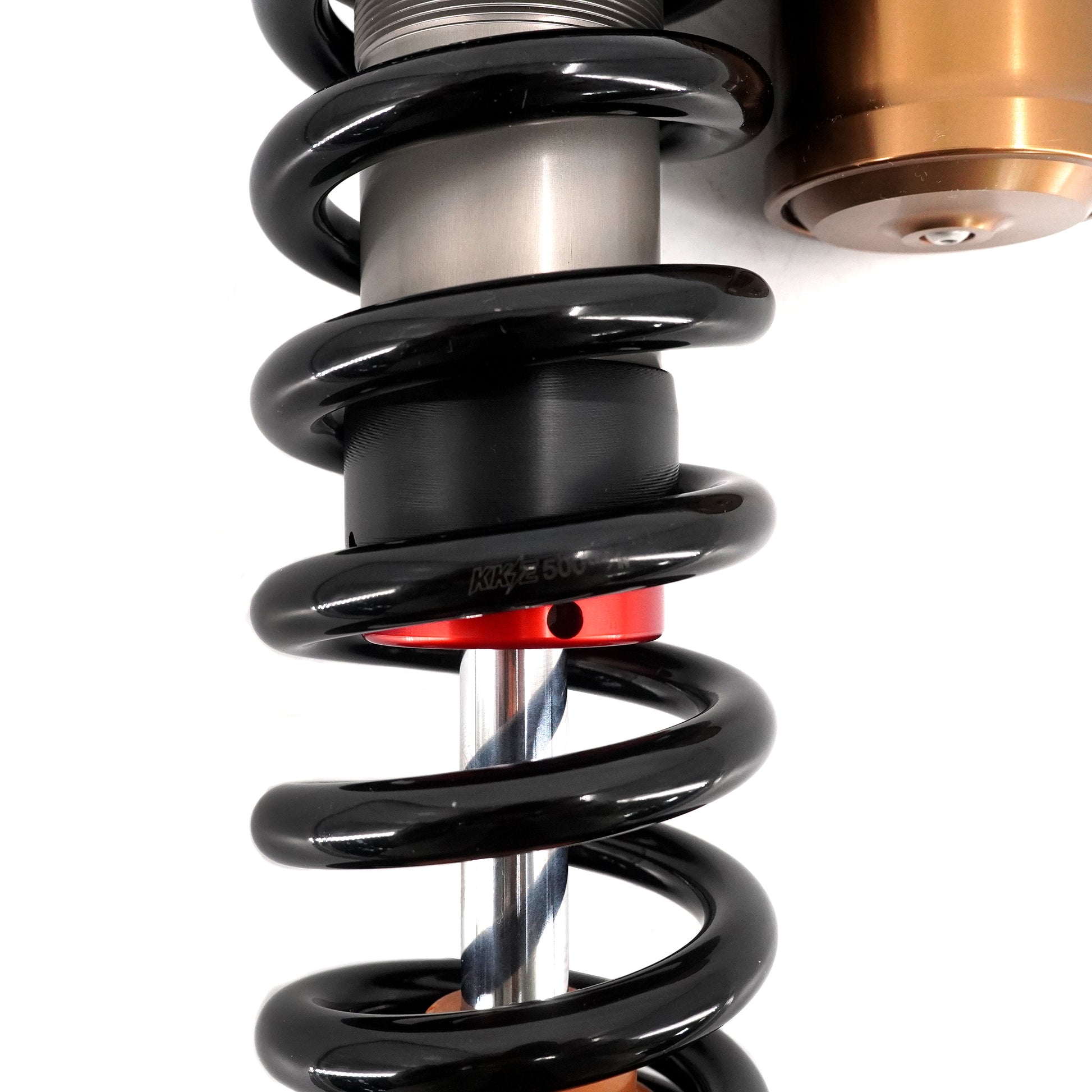

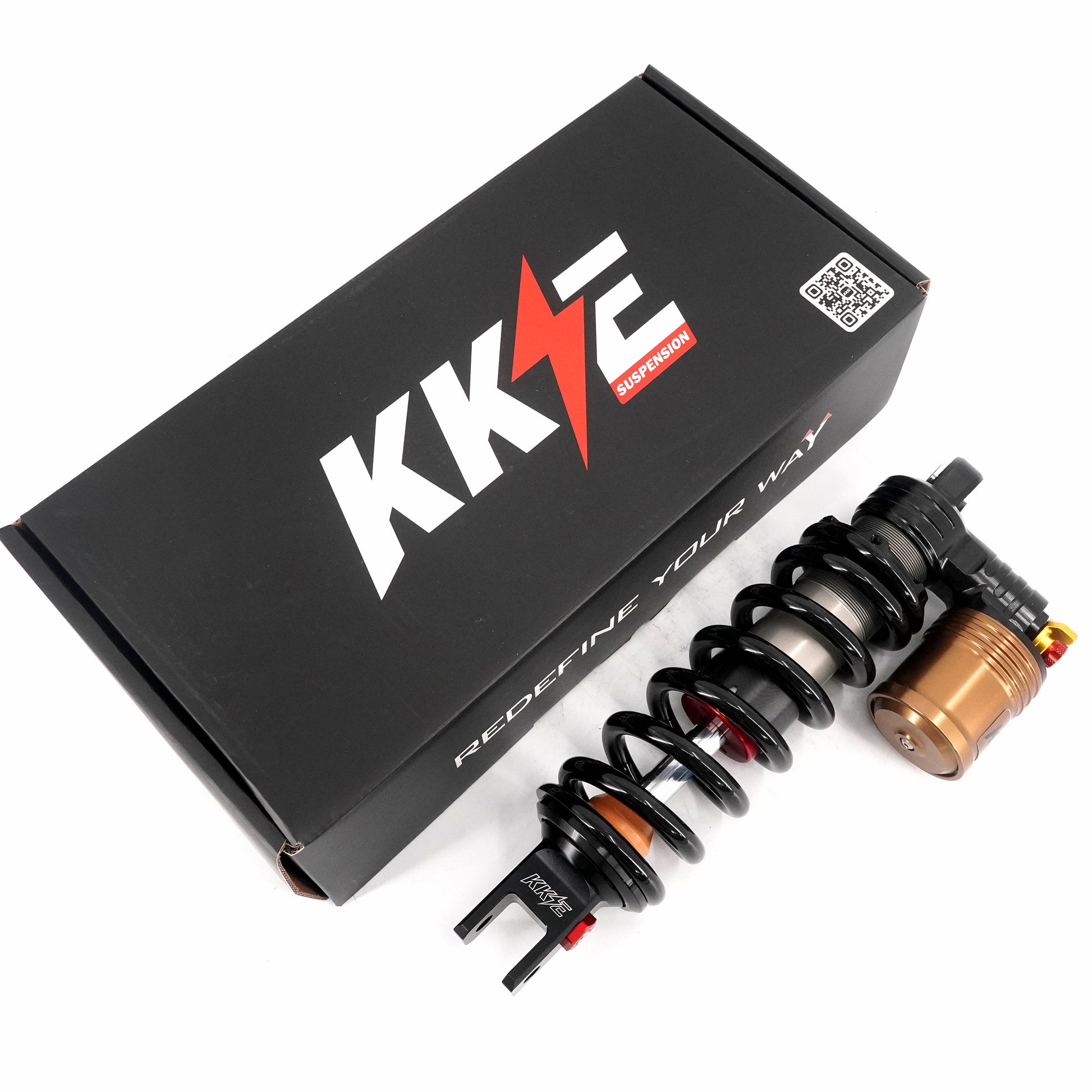

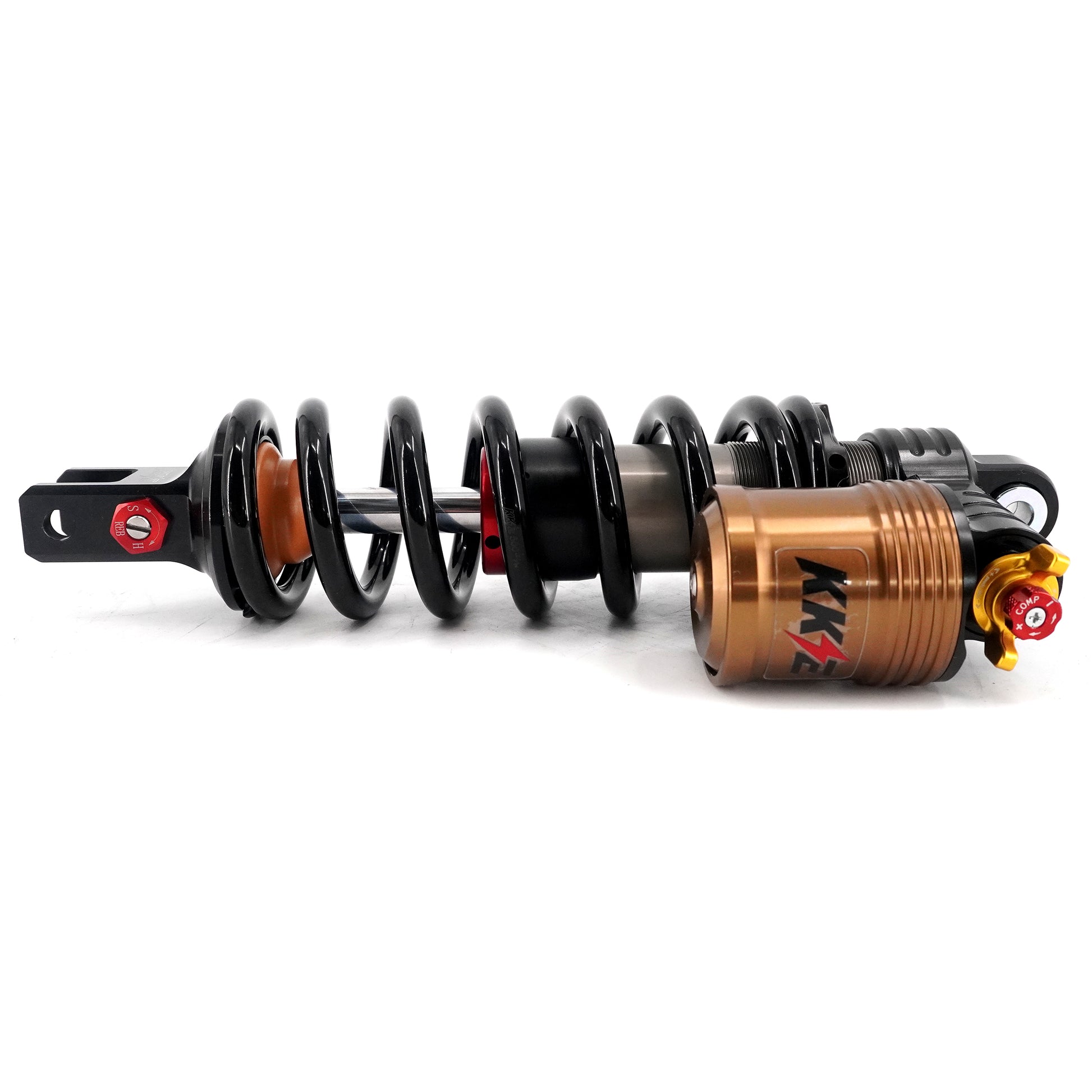

  • Black shock spring with Bronze air chamber

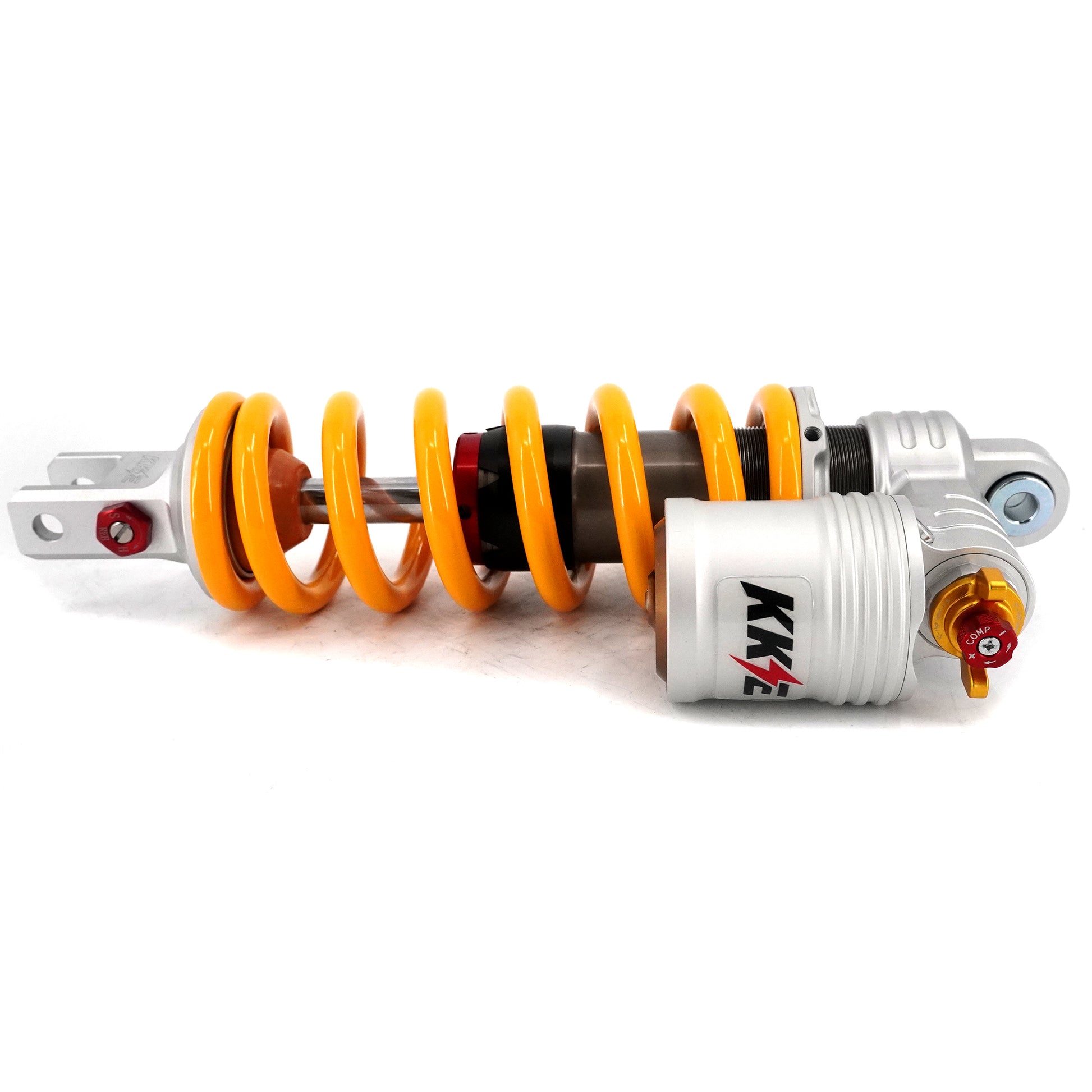

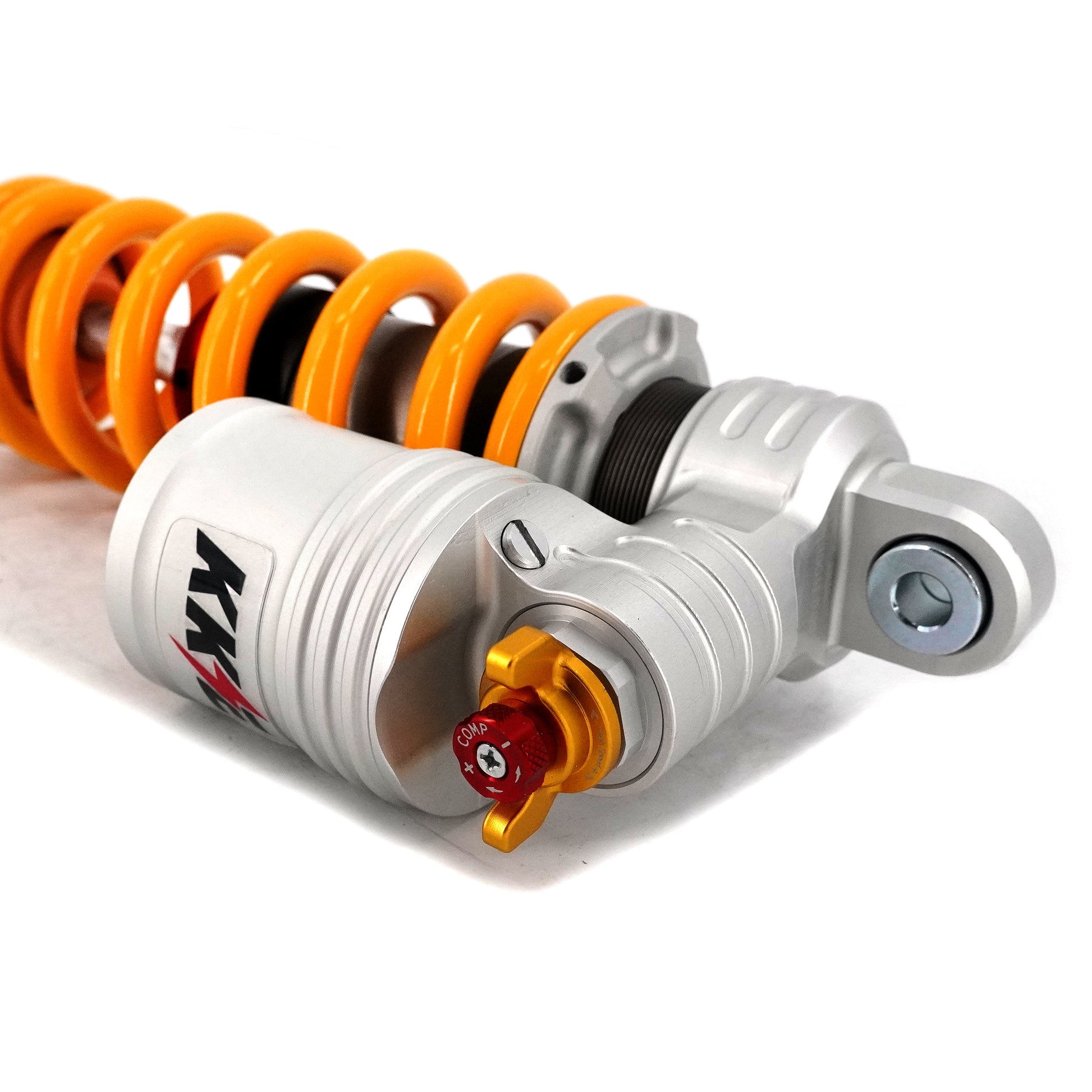

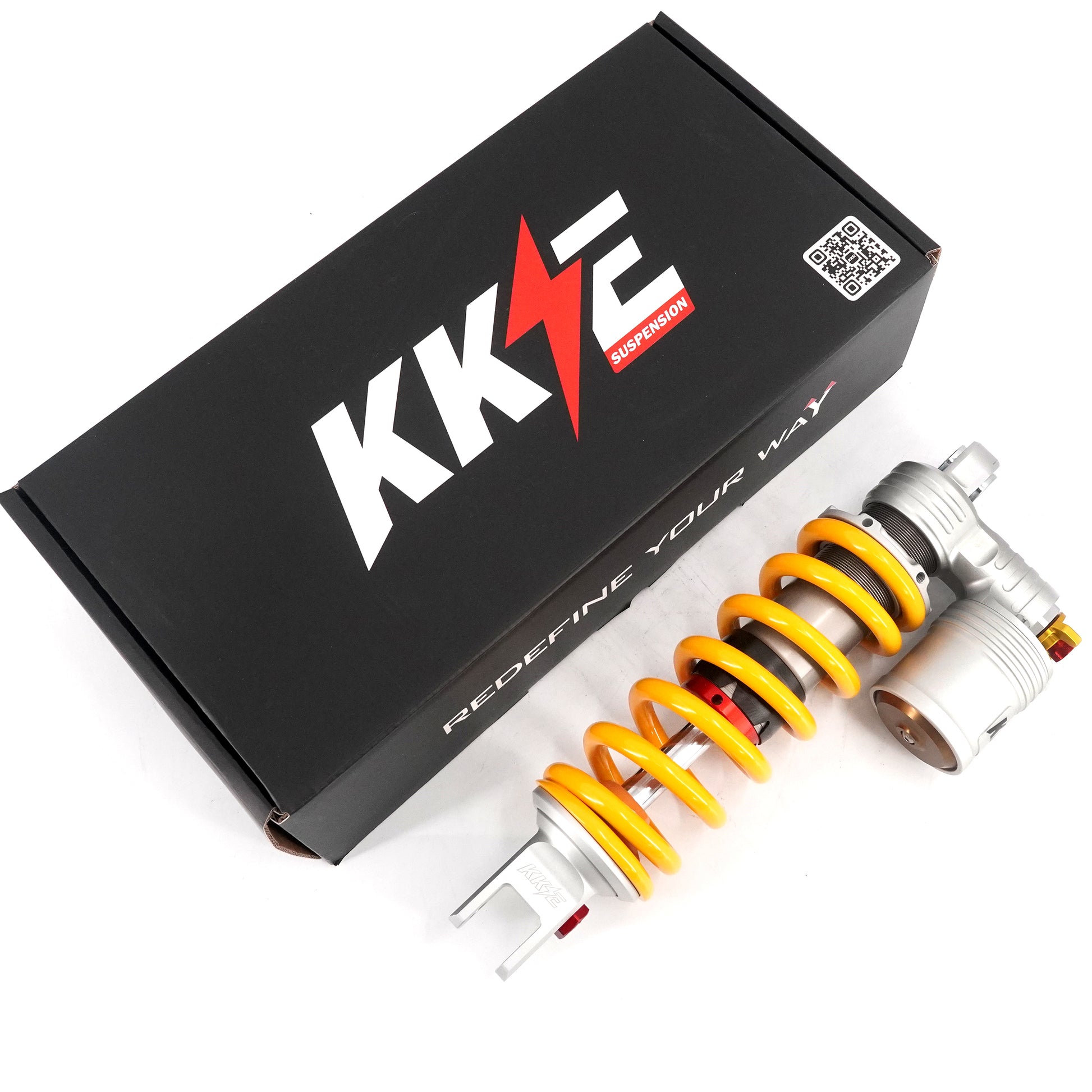

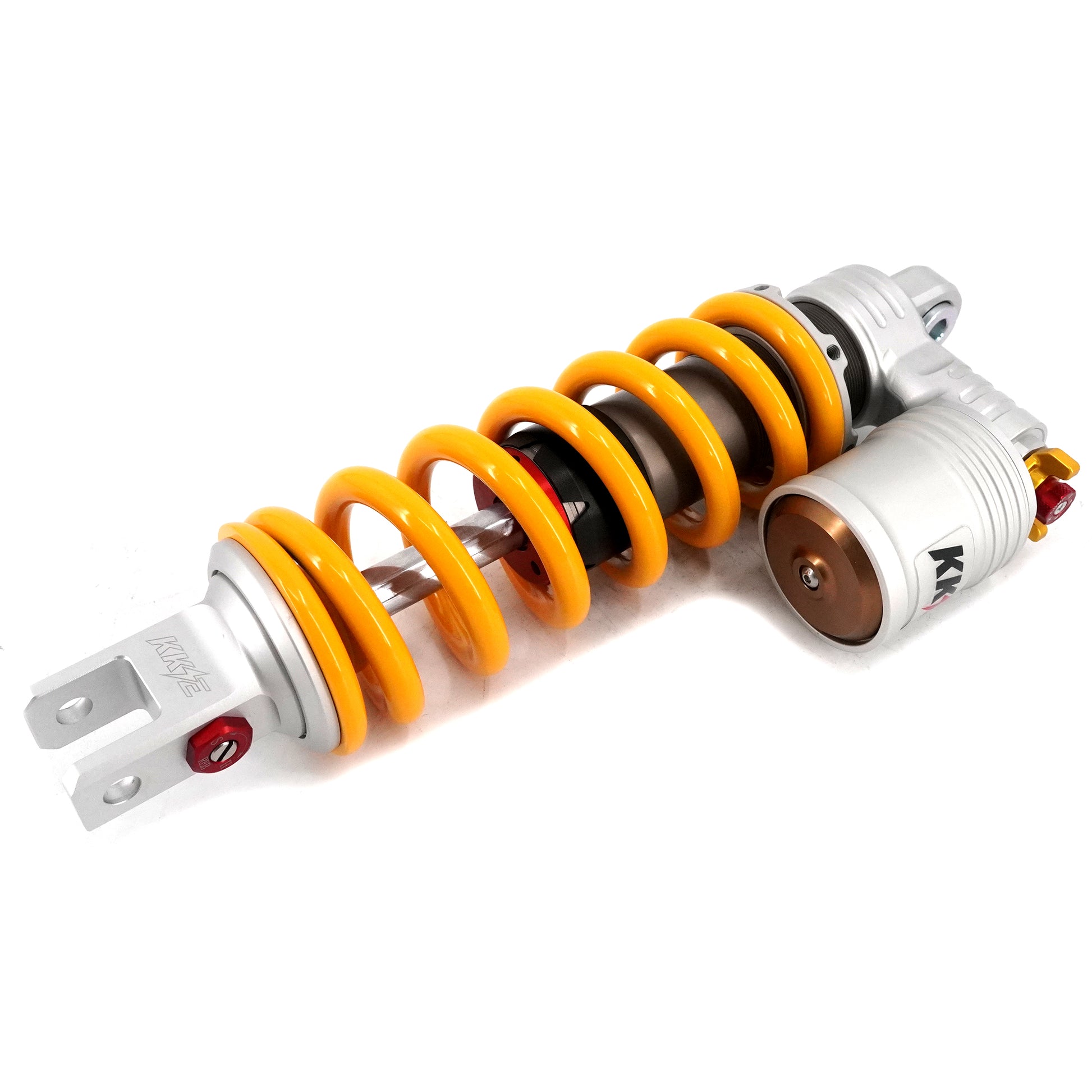

  • Gold shock spring with Silver air chamber

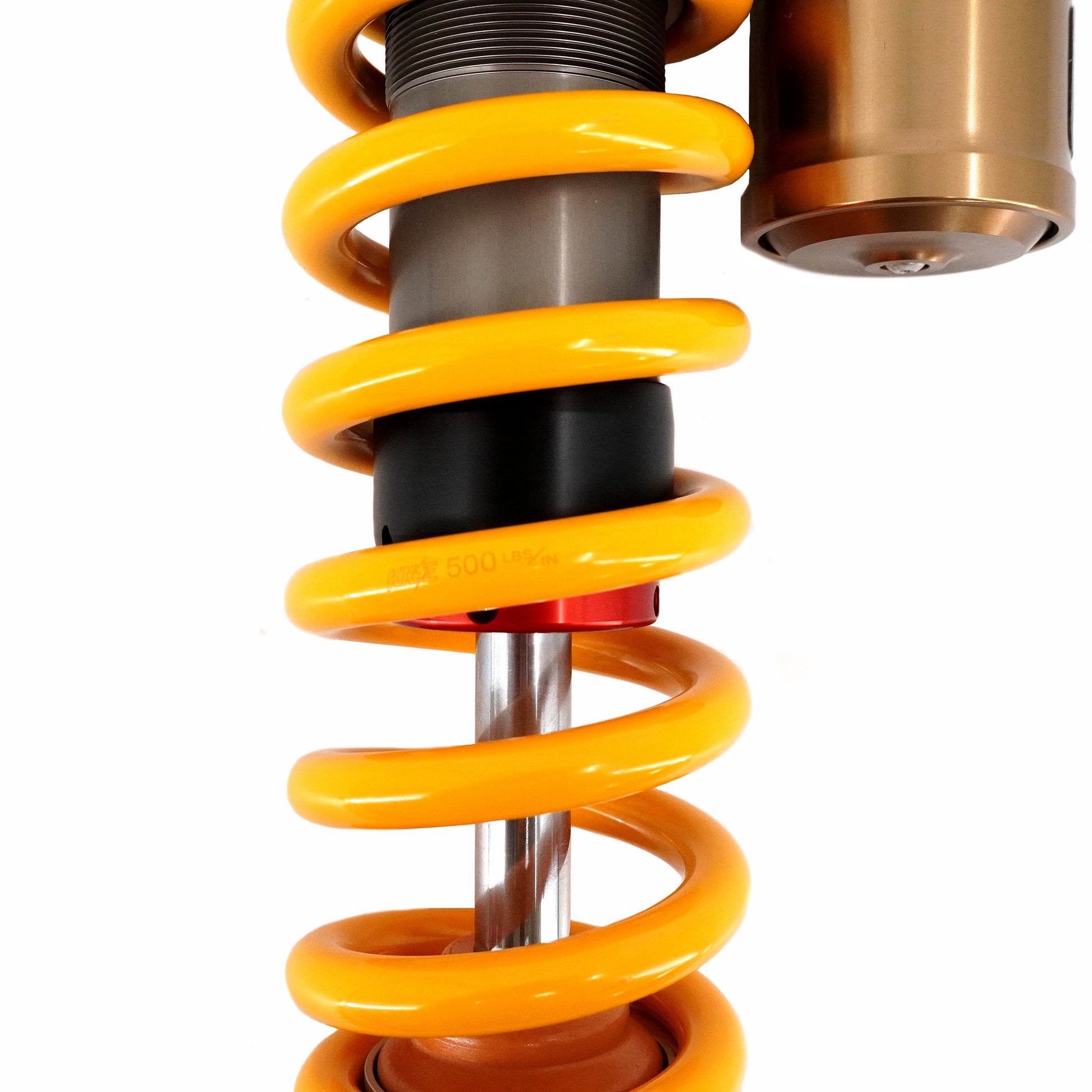

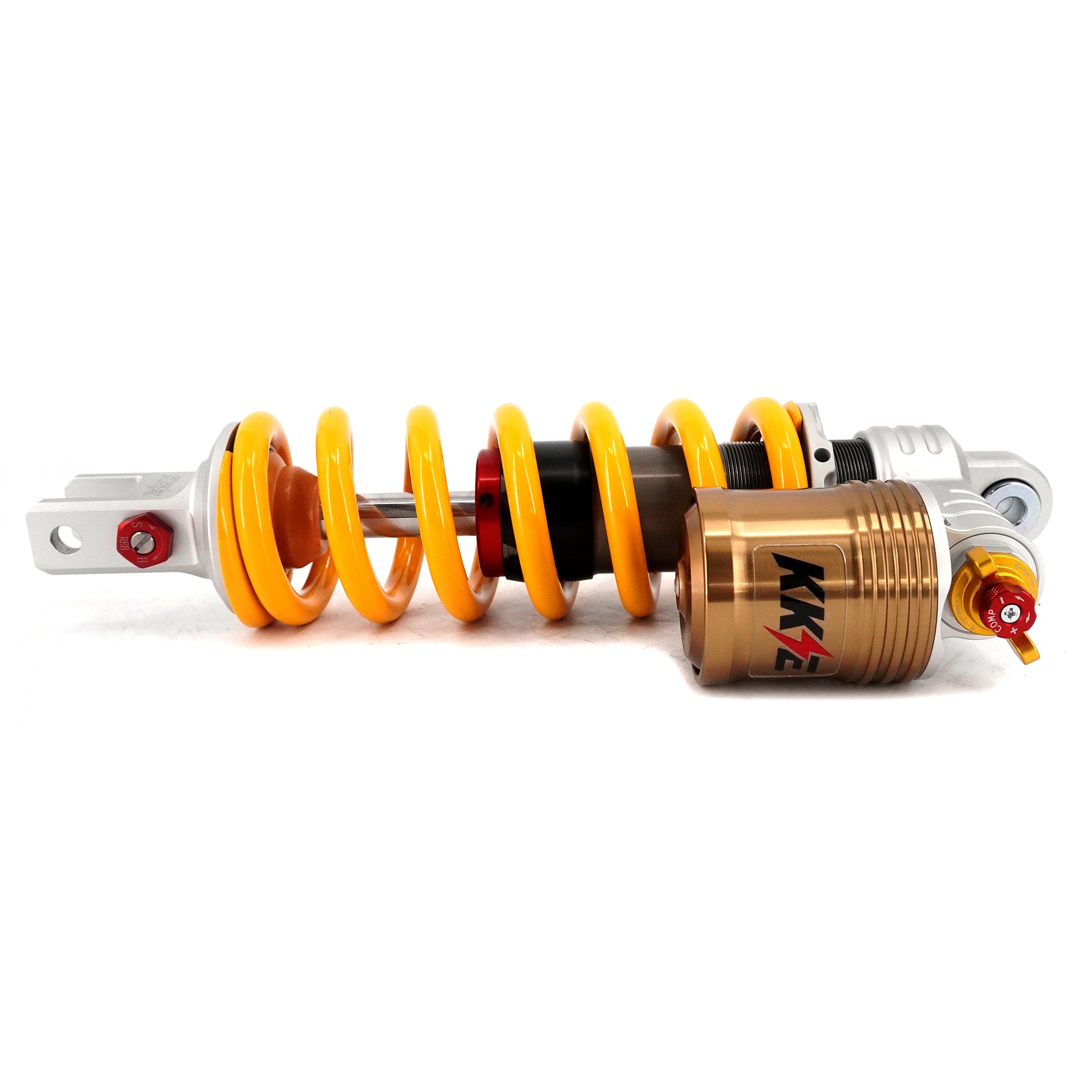

  • Gold shock spring with Bronze air chamber

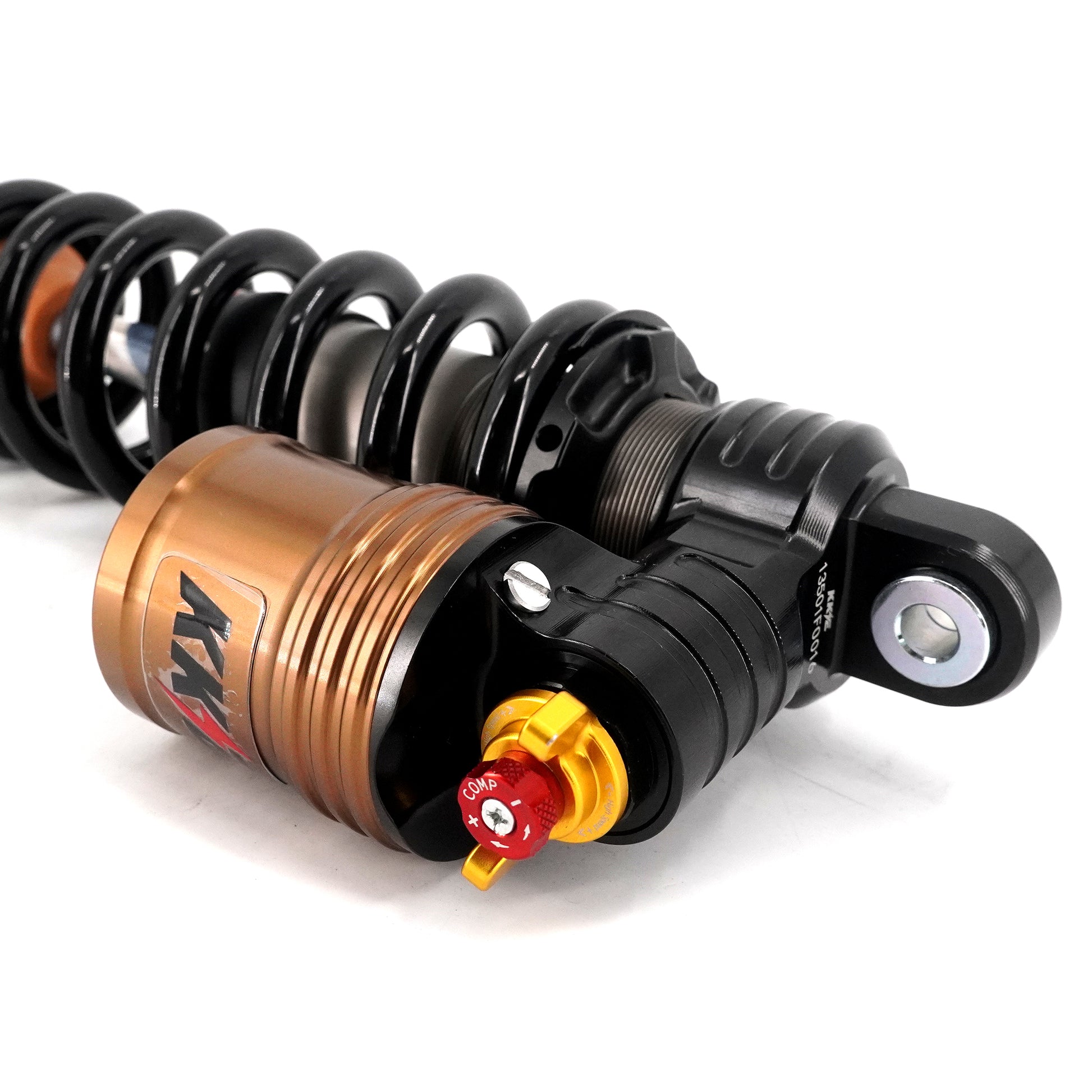

Core Function Introduction:

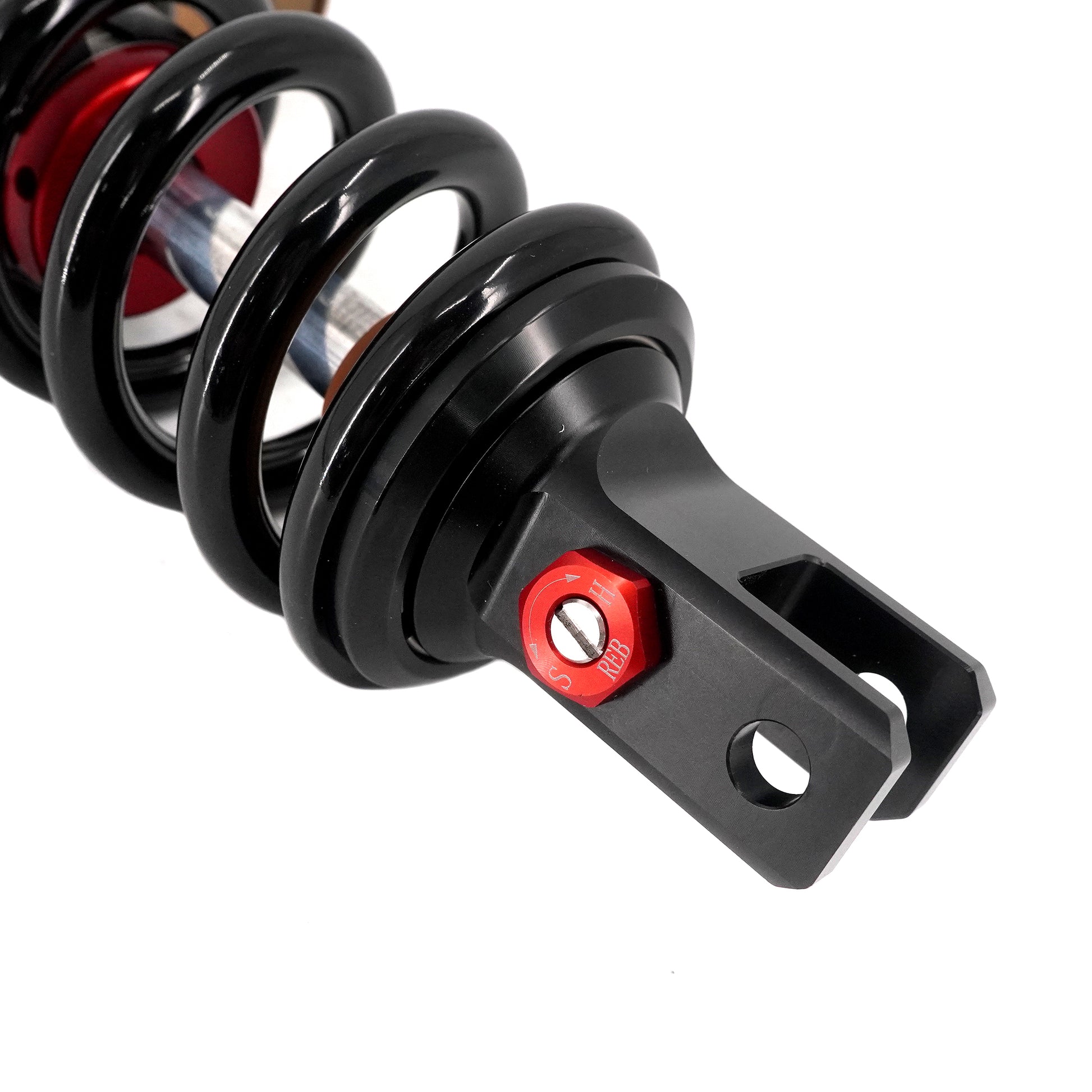

Rebound Adjustment: (15±2 clicks)
Low-Pressure Adjustment: (18±3 clicks) – Adjusts compression damping force
High-Pressure Adjustment: (18±3 clicks) – Increases high-speed damping (enhances support)
Preload Adjustment: (0–10mm) – Loosen/tighten the locking screw during adjustment
